SVX style Front Lighting Kit (Right Hand Drive)
for Land Rover Defender

This item is a complete front lighting kit for the SVX style front grille kit for the Land Rover Defender.

This is suitable for right hand drive vehicles as the headlights have a right hand drive beam pattern.

With the SVX grille now available as an aftermarket kit it is now more affordable but the light kit from Land Rover is expensive.

We have developed our own light kit to create an affordable solution for the lights.

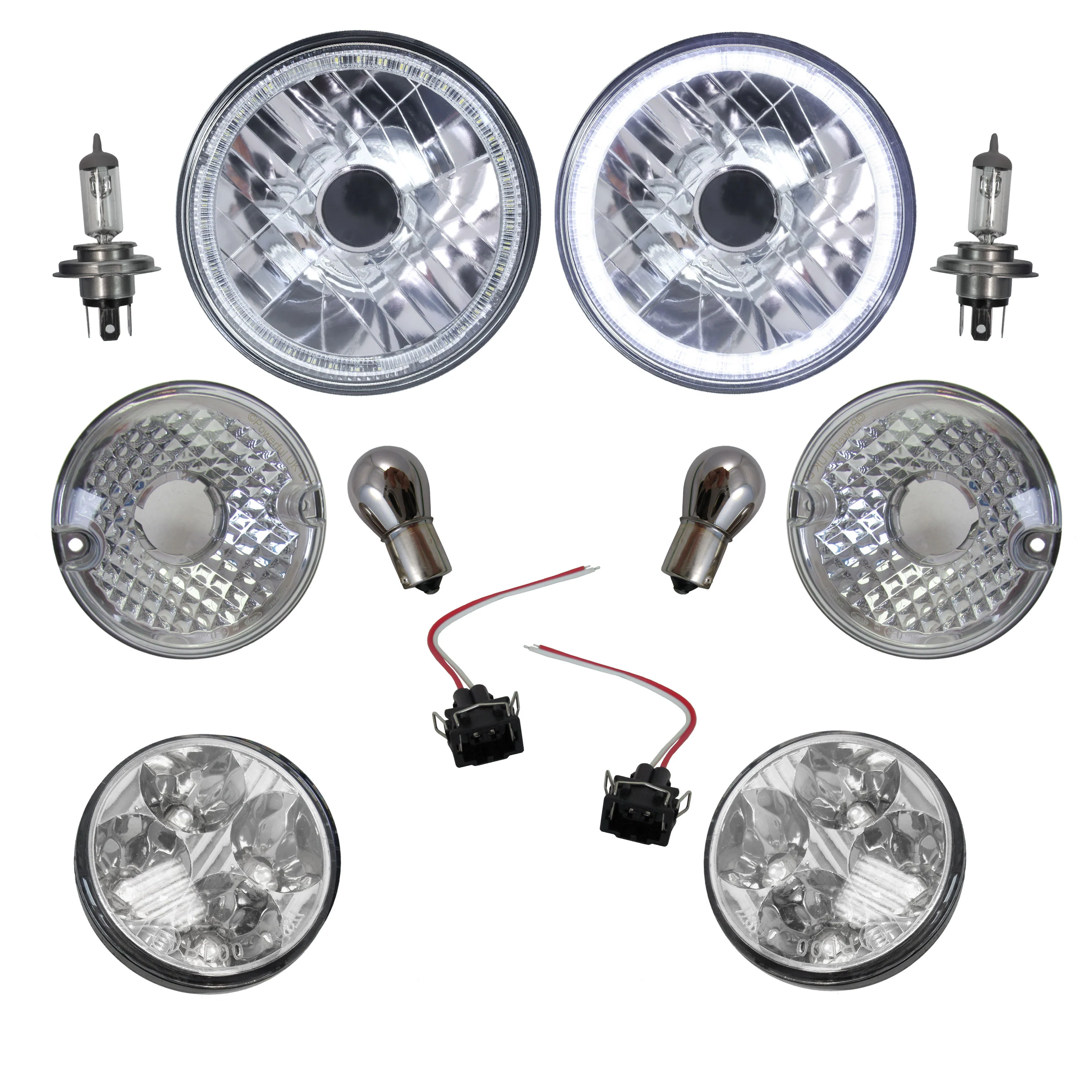

This kit contains the following parts :

1) Pair of 7 Inch headlights with DRL style LED 'Angel Eye' (right hand drive) and Halogen H4 bulbs

2) For the top corner light - A pair of 4 LED DRLs with a clear lens included with fitting brackets.

3) For the bottom corner lights - A pair of cystal indicator lights with chrome bulbs that flash orange and electrical connectors pre assembled with wires.

These lights are slightly different to the Land Rover kit but we think the DRL lights are more useful than the driving lights on the Land Rover kit.

As our kit does not have the driving lights there is no need for the additional wiring loom and relay that you need to wire in on the original Land Rover kit.

Please be advised that the surround is not included in this kit, however you can purchase these separately.

This is not a genuine Land Rover light kit but can be used as an alternative to Land Rover Part number  VPLDV0001

This kit comes with our own design of fitting brackets to make all the lights easy to fit - we have tested these with our own SVX kit and it should also fit other SVX style grille kits.

These lights are not e-marked but will pass a UK MOT.

This item is not available for international sale.

Fitting Guidance

Wiring connections

Headlights - these fit to the original headlights connectors. There is a pair of wires at the bottom of the headlights that need to be connected to the side lights for the side light LED's

Indicators - These connect to the original indicator wires - you will need to cut off the original connectors and fit the new connectors provided ( Blue = Negative / Green = Indicator Signal )

DRLstyle Lights - These can be connected to the side lights - they are not so bright that they will cause dazzle at night ( no need for dimming relay ) they are more of an additional side light than a true DRL

See below demo video.

>

Which Vehicles will this fit?

This will fit all Land Rover Defender Models with SVX grille (Right Hand Drive models)
